Electrostatic Precipitator

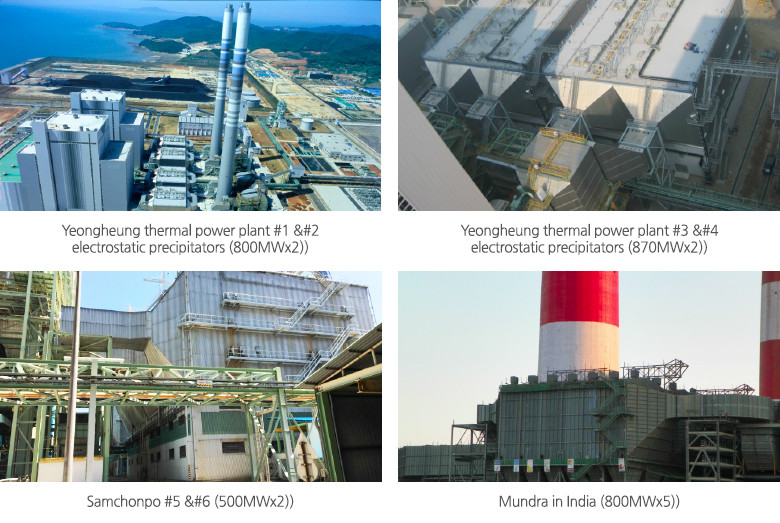

The Electrostatic precipitators removes dust from emission sources utilizing the principal of corona discharge. We strictly fulfill the global dust discharge standards with our highly efficient electrostatic precipitators for Yeongheung thermal power plant 1~4 units, Hadong thermal power plant 7~8 units, Samcheonpo 5~6 units which is retrofit system, Mundra plant in India, and Cirebon in Indonesia.

°³¼± Àü/ÈÄ ºñ±³ °ü·Ã À̹ÌÁö

Projects

No. Project Name Client Size/specification
1 Yeongheung thermal power plant #1,2 electrostatic precipitators Korea South-East Power Co.,Ltd 800 MW x 2
2 Yeongheung thermal power plant #3,4 electrostatic precipitators Korea South-East Power Co.,Ltd 870 MW x 2
3 Hadong thermal power plant #7,8 electrostatic precipitators Doosan Heavy Industries & Construction.Co., Ltd 500 MW x 2
4 Cirebon electrostatic precipitators in Idonesia Doosan Heavy Industries & Construction.Co., Ltd 695 MW x 1
5 Mundra electrostatic precipitators in India Doosan Heavy Industries & Construction.Co., Ltd 800 MW x 5
6 Samchonpo thermal power #5,6 electrostatic precipitators Korea South-East Power Co.,Ltd 500 MW x 2

Fabric Collectors

As environmental standards and regulations for dust emission are getting stricter and stricter, Halla Energy & Environment developed the high efficient fabric collectors by improving the large scale electrostatic precipitators which were mainly used in cement kilns and proven the better performance and results. Also, our air coolers and fabric collectors of high efficiency that is the pre-treatment facility at the steel mill where the large volume of high-temperature is emitted maintains reputations at all installation sites for its superior performances

Projects

No. Project Name Client Size/specification

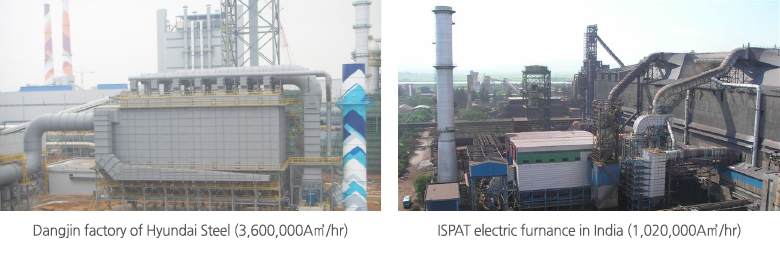

1 ISPAT electrostatic precipitators in India ISPAT 1,020,000A§©/hr x 1unit
2 Hyundai steel #3 sintering furnance of electrostatic precipitators Hyundai Rotem Company 900,000A§©/hr x 2unit
3 Dangjin factory of Hyundai Steel electrostatic precipitators Hyundai Steel Company 3,600,000A§©/hr x 1unit

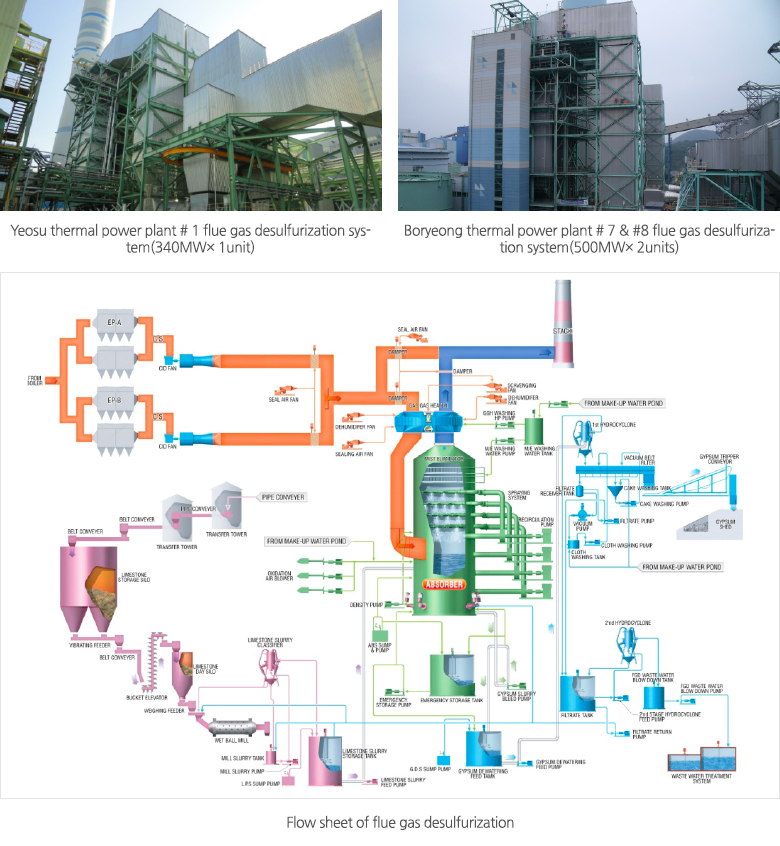

The flue gas desulfurization (FGD) system removes sulfur oxides present in flue gas produced in boilers and power generation plants utilizing coal or heavy oil as fuel. Halla¡¯s FGD system having well-arranged nozzles to spray overlapping in several layers according to the gas flow, has outstanding efficiency in removal of sulfur oxides. Also, Halla FGD offers the advantages of economical initial investment and low operation & maintenance costs as well. High purity gypsum, a by-product, can be used in making gypsum board, an adhesive mixture for cement, an improving agent for soil and as a road paving material.

Projects

No. Project Name Client Size/specification
1 Boryeong thermal power plant # 7, # 8 flue gas desulfurization system Korea Midland Power Co., Ltd

500 MW x 2Unit

2 Boryeong thermal power plant # 1, # 2 flue gas desulfurization system Korea Midland Power Co., Ltd

500 MW x 2Unit

3 Honam thermal power plant # 1, # 2 flue gas desulfurization system Korea East-West Power Co., Ltd

250 MW x 2Unit

4 Yeosu thermal power plant # 1 flue gas desulfurization system Korea South-East Power Co.,Ltd 340 MW x 1Unit
5 Yeongnam thermal power plant # 1, # 2 flue gas desulfurization system Korea South-East Power Co.,Ltd 200 MW x 2Unit

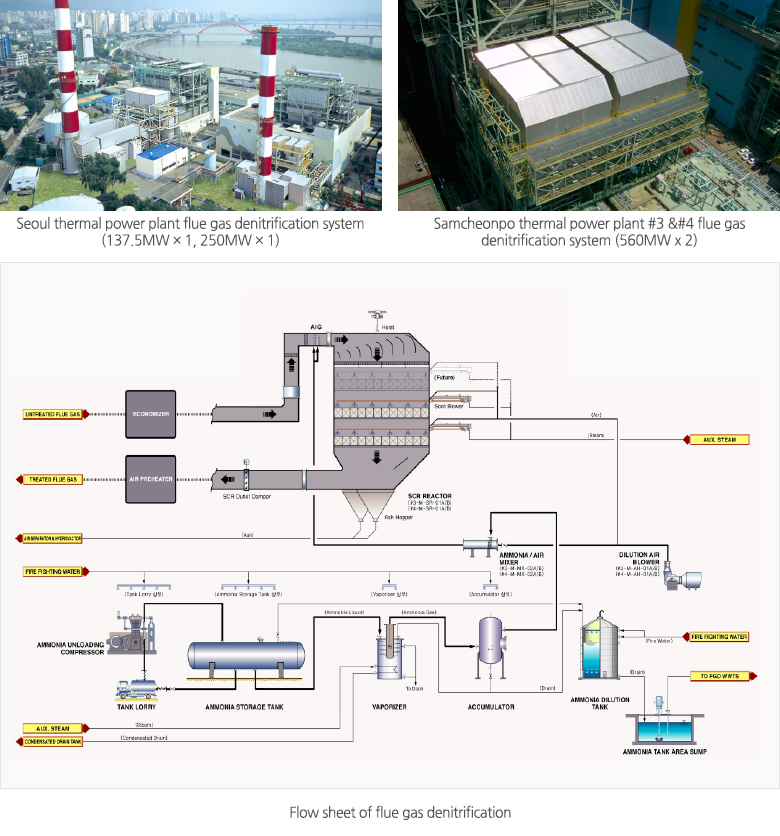

Halla Energy &Environment is equipped with its own design and supply capacity for selective catalytic reduction (SCR) flue gas denitrification systems. Halla has successfully executed construction of a denitrification system for unit #4  of the Seoul thermal power plant, the first denitrification facility installed in a thermal power plant in Korea. The selective catalytic reduction (SCR) is the system to decompose nitrogen oxide generated from combustion into harmless nitrogen and vapor before emission to atmosphere by passing the exhaust nitrogen through the catalytic layer along with reductants (ammonia or urea).

Projects

No. Project Name¸í Client Size/specification
1 Seoul thermal power plant # 4, # 5 flue gas denitrification system Korea Midland Power Co., Ltd 137.5 MW x 2 unit
250 MW x 1 unit
2 Samcheonpo thermal power plant # 3 & #4 flue gas denitrification system Korea South-East Power Co.,Ltd 560 MW x 2 unit
3 Hyundai green power thermal power plant # 5 ~ # 8 flue gas denitrification system Hyundai Green Power 100 MW x 4 unit
4 Dangjin thermal power plant # 9 & 10 flue gas denitrification system Daelim Industrial Co., Ltd 1,000 MW x 2 unit
